Your slitting machines are the foundation of your production line, so every minute they run is worth protecting. While a single bad roll may seem like a minor issue, it can snowball into a halt of an entire production line and result in high costs and material waste. Unplanned equipment downtime can cost manufacturers up to $50 billion per year, underscoring the need to take minor issues seriously.
The good news is that these operator errors are actually equipment mismatches. In most cases, it’s your equipment that’s holding your slitting machines back. There are quick fixes for these errors, but having the proper setup is the best long-term solution for peace of mind and your machine’s longevity.

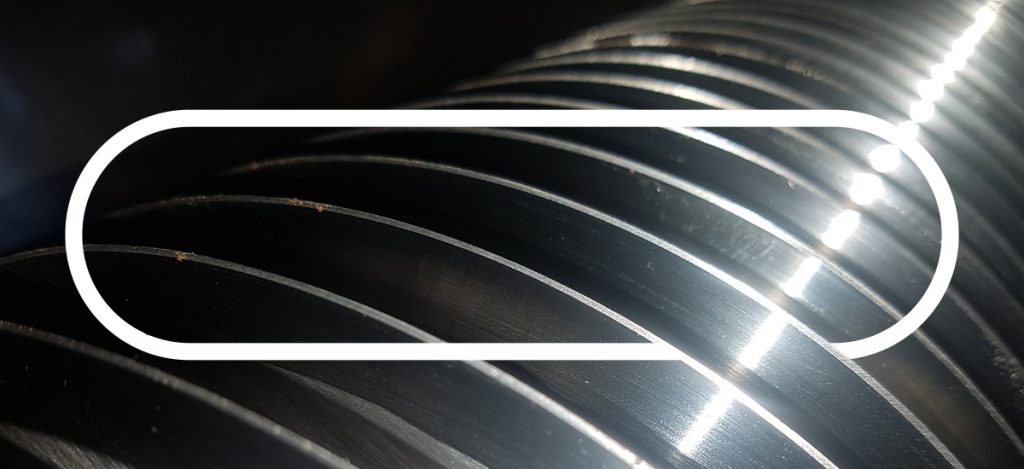

In this shear slitting guide, we’ll discuss five common slitting mistakes, how to fix them with quick adjustments and how to prevent them with long-term solutions, so you don’t have to worry about unnecessary downtime.
1. Loose or Telescoping Rewind Rolls
A loose or telescoping rewind roll is one of the most common slitting mistakes. Visually, telescoping is when layers slide laterally across one another. It often happens due to bad winding technique, uneven tension across the web width or an alignment issue. Operators spot this mistake in both new material runs and even in the middle of expansive runs. Fortunately, this is solvable with both a quick fix and a long-term solution.
Quick fix: Correctly position your diameters to ensure that they accurately read the roll growth. You should also dial in your tension profile before the run starts, as doing so mid-run can create pressure areas that slide layers out. Finally, confirm that the core is chucked correctly before proceeding to the next step to prevent slippage at the foundation. You can make this quick fix part of your routine to ensure your runs aren’t interrupted by a telescoping rewind roll.
Long-term solution: Although tension control is crucial, you cannot wind a straight roll with a wandering web. With Intertech Precision’s Pneumatic Knife Holders, you invest in a long-term solution that eliminates mechanical instability, which often leads to a loose or telescoping defect.
2. Material Wrinkling
Operators often struggle with how to prevent wrinkling or “tin-canning” in slitting, particularly in film and foil applications. This material wrinkling is a sign of uneven stress distribution or drag. Misaligned rollers, skewed master rollers or a tension issue are typical causes. However, there is a proven quick fix to get your line back up and running.
Quick fix: First, correctly set your unwind tension by checking your tension profile. To avoid material wrinkling, you need adequate tension to decrease the chances of overstressing your materials. Next, confirm that your master roll is centered and even across your shaft, as a skewed roll would cause the web to bunch diagonally. Finally, check the air pressure in your unwind shaft to ensure it won’t cause lateral damage during runs.
Long-term solution: If you’re looking for a reliable solution to material wrinkling, investing in Intertech Precision’s Ground Circular Knives can help eliminate the hidden variable of cutting resistance. Standard blades are susceptible to microscopic surface imperfections that can cause drag. With blades like the Precision-Ground Circular Knives, which are finished to tighter concentricity tolerances, you get reduced friction at critical cutting zones and zero displacement during runs.
3. Poor Edge Quality
Poor edge quality can affect your finished roll’s value by contaminating the customer’s final product. These rough edges can manifest as rough burrs or dust that are actually microscopic fracture debris caused by a dull blade, an incorrect cant angle or the wrong blade for the substrate. The silver lining is that this issue is manageable by following these action items.
Quick fix: The fastest way to check for poor edge quality is to inspect your blades for nicks and wear daily. Take a few minutes to ensure that all your blades are clear of microscopic debris that could end up in the customer’s hands. You should also check the cant angle’s setting and set it at the right amount, as too aggressive grinds the blade and too open tears the web.
Long-term solution: Stop tolerating the challenges in shear slitting. Instead, consider Intertech Precision’s Shear Cut Systems and Knife Sharpening Services, which complement each other in providing you with the sharpest knives that surgically cut without generating debris and dust.
4. Inconsistent Slit Widths
Inconsistent slit widths are almost always due to a mechanical instability issue or “slop” in your knife holder assembly. These could be through lateral movement in your blade holder, worn shafts or thermal expansion in your mechanical system. The upside is that a quick fix exists and is easy to execute.
Quick fix: Start by stopping your line and doing a physical check for slop or wiggle in your knife holder assembly. Make sure there is no lateral movement in your knife holders before proceeding. Afterward, check your pneumatic pressure and confirm that it’s stable.
Long-term solution: To permanently eliminate lateral movement that causes variance in your slit widths, consider upgrading to Intertech Precision’s Pneumatic Knife Holders, which lock tightly in place and eliminate mechanical slop entirely.
5. Blade Breakage and Premature Wear
Do your blades snap frequently? If so, you have a critical setup issue. Slitter knives are meant to be consumable and used for several runs before they wear out. Even after hundreds of runs, they should not break or snap in half. This premature breakage or wear is one of the most severe issues in slitting. It’s typically caused by excessive side-load force or a mismatch of the blade’s sharpness and the material.
Poor maintenance strategies can reduce a facility’s productive capacity, but operators can prevent premature blade breakage and wear by taking early action.
Quick fix: Assess your machine’s side-load force and ensure the blades are only lightly touching, not grinding. If it looks like your blades are “kissing,” then it’s a good sign that your side-load pressure is at optimal levels.
Long-term solution: For a perfect match between your blade and material, refer to Intertech Precision’s Custom Knife Design Services, which provide the custom precision and matching metallurgy you need for your production line.
Optimize Your Production With Precision Slitting Solutions
Running a smooth operation is more than just sticking to quick fixes. It’s about having the tools with custom precision, unmatched reliability and rugged durability. At Intertech Precision, our decades of experience have provided customers with tailored solutions they need to minimize downtime and deliver surgical cuts. We take pride in bringing high-quality industrial knife solutions to a wide array of industries and applications.
Ready to take your production line to the next level? Request a free quote today and start investing in your system’s longevity and future.
